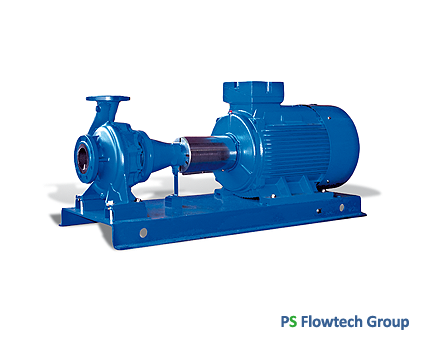

Standard centrifugal pumps based on ISO733 (DIN24255)

Universal centrifugal pump for all kind of clean liquids up to heavily contaminated liquids with high dry mass content based on ISO 733 (DIN 24255).

  • Max. flow (m3/h): 2000
  • Max. differential head (m): 180
  • Max. pumped fluid temperature (°C): 180
  • Material of wetted parts: SS316, Duplex, Cast iron, Ductile iron, Carbon Steel, Bronz, Other on request...
  • Types: vertical, horizontal or with magnetic coupling

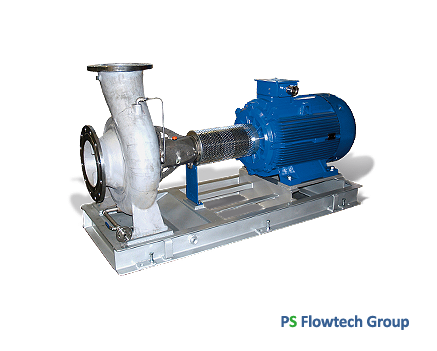

Process centrifugal pumps - single stage, based on ISO 5199, ISO 2858

Process centrifugal pumps meeting ISO 5199 and ISO 2858 norms optimal for hard applications in chemical and pertochemical sector. With high varierty of implellers this range can handle from clean liquids up to thicker suspensions with dry mass content of 8%.

  • Max. flow (m3/h): 1 300
  • Max. differential head (m): 140
  • Max. pumped liquid temperature (°C): 350
  • Material of wetted parts: SS316, Hastelloy, Monel, Durimet, Duplex, other materials on request
  • Types: vertical, horizontal or with magnetic coupling

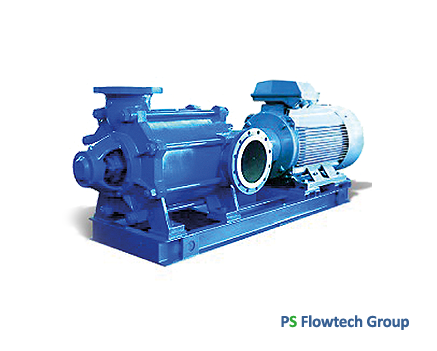

Centrifugal pump, multistage

Centrifugal multistage pumps for universal use. Engineered for positions where clean liquids has to be transfered at low flow and high diferential head. Alternatively available with self-priming ability or hermeticaly sealed thanks to magnetic coupling.

  • Max. flow (m3/h): 840
  • Max. differencial head (m): 140
  • Max. pumped fluid temperature (°C): 200
  • Materials on wetted side: SS316, Duplex, Cast Iron, Ductile Iron, Carbon Steel, Bronz and other on enquiry
  • Types available: vertical, horizontal or with magnetic coupling​

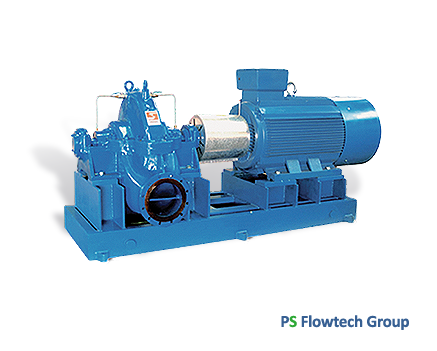

Split-Case centrifugal pumps

Split-Case centrifugal pumps are ideal solution for all applications where high flow of clean liquid up to 4000 m3/h at relatively small discharge head is needed.

  • Max. flow (m3/h): 4000
  • Max. discharge head (m): 200
  • Max. pumped liquid temperature (°C): 130
  • Material execution: Casr Iron, Nodular Cast Iron, SS316, Duplex
  • Execution: vertical, horizontal

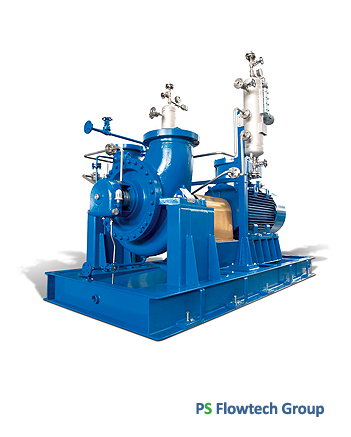

Process centrifugall pumps, single/multi stage based on API 610, API 682, API 685 (with magnetic coupling)

Horizontal and vertical centrifugal agregates for most difficult applications in checmial and petrochemical industry were the equipment has to fulfill API 610 standards.

  • Max. flow (m3/h): 1 500
  • Max. differential head (m): 350
  • Max. pumped fluid temperature (°C): 450
  • Material of wetted parts: SS316, others on request
  • Types: vertical, horizontal

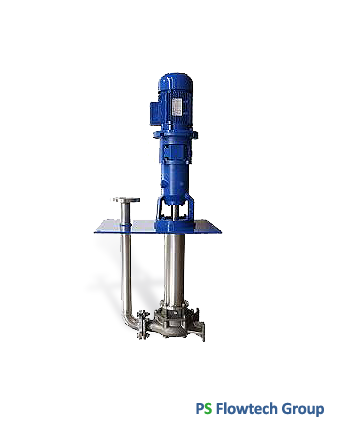

Process centrifugal pumps - single stage, vertical based on ISO 5199, ISO 2858

Process centrifugal pump into heavy duty industries where only the most durable equipments are allowed to be used in chemical and mostly petrochemical sector where pump has to meet ISO 5199 and ISO 2858 norms. For use on positions where clean liquids are pumped up the liquid with high dry mass content.

  • Max. flow (m3/h): 1 300
  • Max. discharge head (m): 140
  • Max. pumped fluid temperature (°C): 200
  • Material of wetted parts: SS316, Hastelloy, Monel, Durimet, Duplex, Other material on request...
  • Types: vertical, horizontal or with magnetic coupling

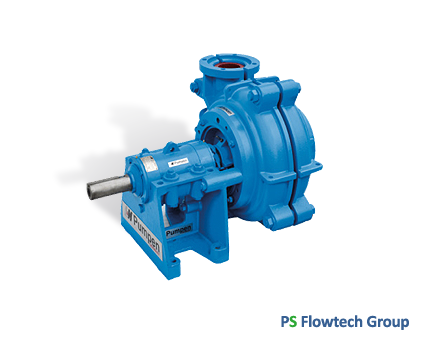

Process centrifugal pancer pumps

Proccess pancer pumps engineered for heavy duty applications in chemical and petrochemical industry based on ISO 5199 and ISO 2858 used for clean liquids up to liquids with very high content of abrasive particles.

  • Max. flow (m3/h): 1 300
  • Max. differential head (m): 140
  • Max. pumped liquid temperature (°C): 200
  • Material of wettes parts: SS316, Hastelloy, Monel, Durimet, Duplex, Other materials on request...
  • Types: vertical, horizontal or with magnetic coupling



Plastic process centrifugal pumps with mechanical seal

Centrifugal pump in plastic execution with mechanical seal based on ISO 2858 / EN 222858.

  • Max. flow (m3/h): 500
  • Max. differential head (m): 90
  • Max. pumped liquid temperature (°C): 140
  • Material of wetted parts:  PP, HMPE, PVDF, PTFE, PP/PVDF/PE-EL
  • Certificates: RoHS, GOST, ATEX

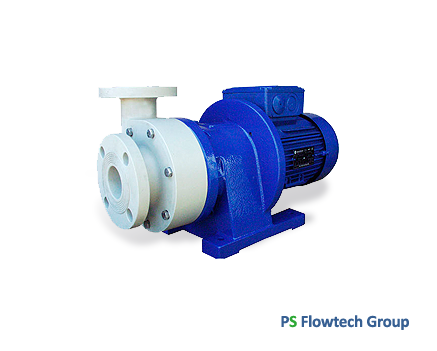

Standard centrifugal pumps in plastic execution, with magnetic coupling

Centrifugal pumps with magnetic coupling in material execution - plastic. Used for transfer or circulation of dangerous liquids, carcinogenic, explosive or very expensive liquids where potential leakage can cost alot.

  • Max. flow (m3/h): 100
  • Max. differential head (m): 45
  • Max. pumped fluid temperature (°C): 100
  • Material of wetted parts:  PP, PVDF
  • Certificates: ATEX, RoHS, GOST

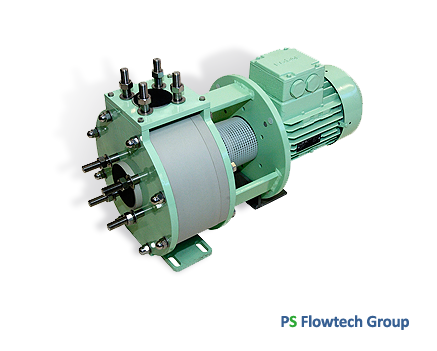

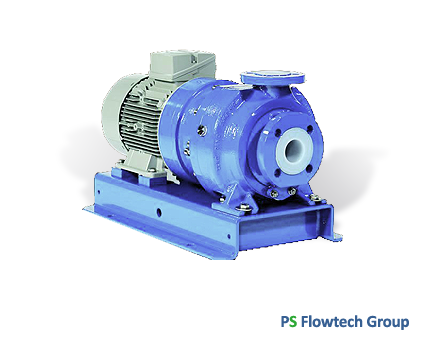

Hermetically closed centrifugal pumps with PFA lining and magnetic coupling

Centrifugal pump in hi-end quality level and original, patented design of magnetic coupling. Pump chamber and all wetted parts are lined with thick PFA composite which resists to majority of chemicals. Products corresponds to EN ISO, 2858, ISO 5199, ISO 15783.

  • Max. flow (m3/h): 400
  • Max. differential head (m): 90
  • Max. pumped fluid temperature (°C): 200
  • Material of wetted parts: Ductile Iron with PFA Lining
  • Certificates: FDA, RoHS, GOST, ATEX
